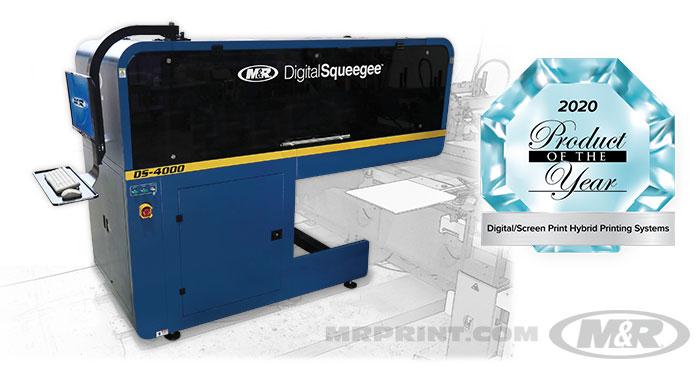

M&R DS-4000 Digital Squeegee Hybrid Printer
M&R-DS-4000-DIGITAL-SQUEEGEE
Quoted for your shop with power, freight and install. Talk to a tech who has run one.
Or call: 763-391-7390 · 817-861-3464
Ships same day from MN & TX · Free shipping on supply orders $300+
M&R's DS-4000 Digital Squeegee: full-color digital printing on a screen-printed underbase, at screen-printing speed.
Overview
The M&R DS-4000 Digital Squeegee is a hybrid printing system that sits between direct-to-garment and screen printing. Your automatic press lays down a screen-printed white underbase, then the DS-4000 prints a full-color CMYK image on top of it. M&R rates it at up to 400 prints per hour, with 16 industrial printheads printing a full-size image every 4 to 6 seconds.
Because the underbase is screen printed, there's no pretreatment and no expensive digital white ink. An eight-to-twelve-color design can be set up with a minimal number of screens, with no separations or custom ink mixes, which cuts art and setup time. The same white underbase can carry different digital images in one run.
The DS-4000 mounts on M&R's Stryker oval press and the Challenger III and Gauntlet III automatics. Prints work on cotton, polyester, tri-blends and performance fabrics, can be combined with specialty effects before or after the digital print, and cure in conventional gas conveyor dryers such as the M&R Sprint 3000.
-
Hybrid Digital + Screen Printing
Full-color CMYK digital print on a screen-printed white underbase. -
Up to 400 Prints per Hour
16 industrial printheads print a full-size image every 4 to 6 seconds (M&R estimate; rates vary with image size and press setup). -
No Pretreatment, No Digital White
The screen-printed underbase replaces both. -
Minimal Screens
Set up an 8-12 color design with a few screens, no separations and no custom ink mixes. -
Prints on Most Fabrics
Tested on cotton, polyester, blends and performance fabrics that take HSA water-based inks and cure in a tunnel dryer. -
Specialty Effects
Add double underbases, clear coats, extra flash cures or specialty inks before or after the digital print. -
Adjustable Print Height
Z-axis printhead distance from 3 to 10 mm above the print surface. -
Control Center
Includes a computer with the operating system software installed. -
Built by M&R
Heavy-duty steel and premium components. -
Warranty & Support
One-year limited warranty and M&R's 24-hour / 365-day support hotline. Pre-paid maintenance agreements available.
