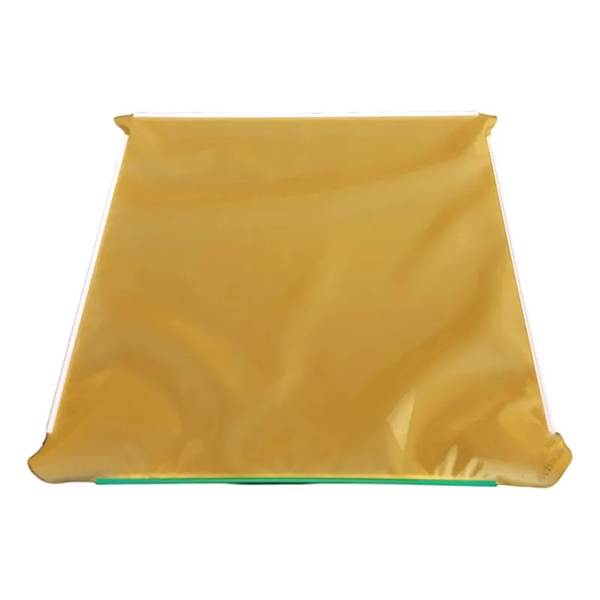

Shur-Loc Mesh Panel MZX 23" x 26" - 230 Sq Bar Yellow
Professional pre-cut 230-count yellow screen printing mesh panel engineered for Shur-Loc MZX stretching systems, providing high-resolution detail, controlled ink deposits, and consistent screen tension.
Characteristics
The Shur-Loc Mesh Panel MZX 23" x 26" – 230 Sq Bar Yellow is a professional-grade pre-cut mesh panel designed for use with compatible Shur-Loc MZX screen stretching systems. Its ready-to-use panel format helps streamline screen preparation while providing consistent positioning and dependable tension across the printing area.
Featuring a 230 mesh count and yellow-dyed mesh, this panel is well suited for screen printing applications requiring fine image definition and controlled ink deposits. The higher mesh count makes it an excellent choice for detailed artwork, fine lines, small text, halftones, and other graphics where print resolution is important.
The yellow mesh helps reduce light scattering during exposure, supporting sharper stencil definition and improved reproduction of fine details. Combined with the Shur-Loc stretching system, the panel provides a practical solution for printers seeking repeatable screen tension and efficient mesh replacement.
- 230 mesh count for detailed screen printing applications
- Yellow-dyed mesh helps minimize light scatter during exposure
- Pre-cut 23" x 26" mesh panel
- Designed for compatible Shur-Loc MZX stretching systems
- Sq Bar configuration
- Supports consistent and repeatable screen tension
- Excellent image definition for fine graphics and halftones
- Suitable for fine lines and small text
- Provides a controlled ink deposit compared with lower mesh counts
- Pre-cut panel design simplifies mesh installation and replacement
- Helps streamline screen-room preparation
- Suitable for professional textile and graphics screen printing
- Ideal for shops requiring consistent screen preparation
- Verify compatibility with your Shur-Loc stretching system and frame size before installation.
- Install the mesh panel evenly to help maintain uniform tension across the entire image area.
- Follow the recommended stretching procedure for the MZX system to achieve consistent results.
- Check mesh tension after installation and before coating with emulsion.
- Use proper mesh tension for the ink, stencil, and artwork being printed.
- Yellow mesh is especially useful when exposing detailed artwork because it helps control light scattering within the mesh.
- A 230-count mesh is generally best suited to finer-detail printing and thinner, more controlled ink deposits than lower mesh counts.
- Select the appropriate emulsion and coating technique for the desired stencil thickness and ink system.
- Optimize exposure settings for the yellow mesh, emulsion, artwork, and exposure equipment being used.
- Keep mesh panels clean and protected from sharp objects to prevent premature damage.
- Fine-detail graphics
- Halftones
- Small text and lettering
- Fine lines
- Detailed logos and artwork
- Controlled ink deposits
- High-resolution stencil work
- Detailed textile screen printing
- Graphics screen printing
- Applications requiring a relatively fine mesh count
- Professional production environments
- Screen rooms using compatible Shur-Loc MZX stretching systems
