EMB PAGL-3030-ZSK-400 12x12 Plastic Hoops 469-010-962
EMB-AG-ZSK-12X12
$93.80$0.00
In stock – 9 available
Sign in to buy
New to SPSI? Open an account
Will-call pickup
-
Maple Grove, MN Corporate Headquarters9 in stock
Usually ready in 24 hours
Ships same day from MN & TX · Free shipping on supply orders $300+

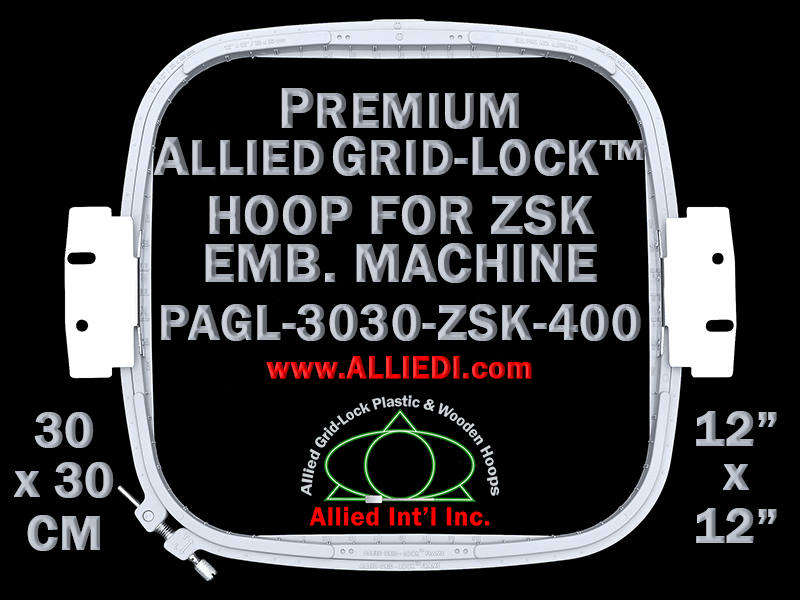

Allied Premium Grid-Lock 30 x 30 cm ZSK hoop: the jacket-back size for 400 mm machines.
Overview
The Premium Allied Grid-Lock (PAGL) 30 x 30 cm (12" x 12") square hoop fits ZSK machines with a 400 mm sewing field. Allied lists it as the most popular size for adult jacket backs.
Straight-edge lips with 1 cm markings on all four sides of the window, plus patented grid lines on the hoop face, help your operators hoop square with the garment. The double height inner hoop and the extra-long 79 mm adjustment screw give a firm grip and a wide opening for heavy jackets.
Features
▼
-
Patented Grid-Lock Alignment Grid
Built-in horizontal and vertical grid lines on the hoop face, spaced 1 cm apart and labeled with numbers and letters, give a quick check that the garment is hooped straight (U.S. Patent No. 6,298,800). -
Straight-Edge Lips
Straight-edge lips with 1 cm line markings run along all four sides of the inner hoop window to help you hoop square with the garment. -
Radial Dots and Inner Wall Lines
Dot marks around the embroidery window and vertical lines around the inside wall of the inner hoop add more reference points for placement without marking the garment. -
Double Height Inner Hoop
The taller inner hoop gives more gripping surface for a tighter hold on the fabric than a single height frame, and adds strength. -
79 mm Bolt-Style Adjustment Screw
The extra-long 79 mm (3 1/8") external screw has a knurled, slotted head. It opens the hoop wider for thick garments and turns by hand or with a flat head screwdriver. -
T and L Markings
Marks on the hoop tab show which way to turn the screw to tighten or loosen. -
Engineered Plastic, Textured Finish
Allied's proprietary plastic composition is built for strength and flexibility, and the non-slip surface texture helps keep tension even across the hooped area.
Specifications
▼
Allied Item #
PAGL-3030-ZSK-400
Series
Premium Allied Grid-Lock (PAGL)
Designated Size
30 x 30 cm (12" x 12") square
Inside Inner Dimensions
11.5" x 11.5" square (Allied also lists 30 x 30 cm)
Machine
ZSK
Arm Spacing / Sewing Field
400 mm (15.7")
Hoop Thickness
Double Height (DH)
Material
Plastic (Allied proprietary composition)
Adjustment Screw
79 mm (3 1/8") external, knurled and slotted head
Hoop Color
Green or grey (Allied fills Grid-Lock orders with either color)
Best For
▼
Adult Jacket Backs
Large Designs
ZSK 400 mm Field
